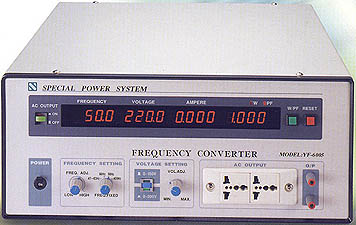

 Frequency, Voltage, Ampere, Power/Power Factor Display Model : YH-6005 (500VA) Frequency Converter |
Features : Adopted crystal oscillator - Output Frequency is very stable. Short circuit and overload protective devices are applied. Digiatal readout. Low waveform distortion. High reliability and best stability. Variety output frequency.
Applications : |
|---|
| 機型 Model | YF-6005 | YF-6010 | YF-6020 | YF-6030 |
| 容量 Capacity | 500VA | 1KVA | 2KVA | 3KVA |
| 輸出電流 O/P Current | 4.5/2.25A | 8.4/4.2A | 16.8/8.4A | 25/12.5 |
| Standard Model Up to 20KVA 另有三相型號 | ||||
| 規 格 : | ||
| 輸入電壓 | Input Voltage | AC 110/220V+/-10% |
| 輸入頻率 | Input Frequency | 50Hz/60Hz |
| 輸出電壓 | Output Voltage | 0-150V, 0-300V |
| 輸出頻率 | Output Frequency | 50/60/400Hz, VAR 47-63 可調 |
| 負載穩定度 | Stability | Less than 少於 : 1% |
| 功率因數 | Power Factor | More than 大於 : 85% |
| 諧波失真 | Harmonic Distortion | Less than 少於 1% |
| 頻率穩定度 | Frequency Stability | +/- 0.01Hz |
| 保護裝置 | Protective Device | Short Circuit, Overload 短路及超荷 |
| 警告裝置 | Warning Device | Buzzer, Lamp 蜂鳴器 及 指示燈 |
以上規格以傳統晶體管為準 , 1KVA 以上可選擇 IGBT 型號 (詳細資料PDF 檔案).
The above specification is based on transistor type model.
However, IGBT type is available in 1KVA or above.
