New Develop Thermo-Devices Testing Chamber
熱敏原件測試爐

Most suitable for IQC test....
Thermostats 熱電偶,
Thermal fuses 熱敏保險絲,
Thermal switches 熱敏開關,
Temperature protectors 溫度保護器, etc.

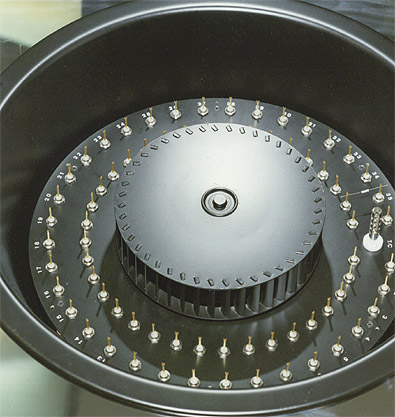

Circular ventilation system ensure temperature uniformity.	Detachable Thermo-sensing probe for measuring chamber temperature.

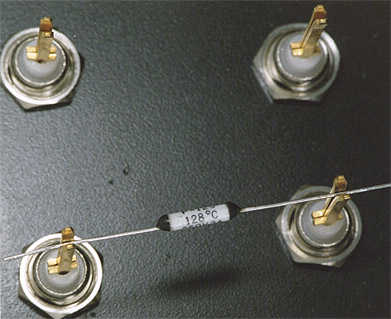

Gold plated PTFE fixtures ...more durable.	More.....

Number of testing samples	36-Pcs
Temperature control range	Room temperature to 200C
Temperature control system	Hot air circulation system
Samples checking system	On/Off
Contact space	36mm
Temperature sensor	Removable K-type thermocouple
Sample fixture	Gold plated PTFE socket.
Outside dimension	600(L) x 600(W) x 400(H)
Meter accuracy	0.2% f.s. + 0.6C
Display range	0.0 to 399.9C
Record devices	Printer/PC **Not Include
Power source	220V/13A/50Hz
