FLAME & OTHER PLASTICS TESTING

Plastics are tested to determine their flammability burning characteristics (Flame rating), their ignition potential do to thermal and electrical sources, their resistance to electrical tracking, and other electrical characteristics. The specific test required on a plastic depends on the type of component or end-use product, as well as the environment in which the plastic is used. This test equipment meets most UL, CSA, IEC, EN and other international safety standards.

TRK-01: Tracking Tester	Flame Test Equipment	NFB-01: Needle Flame Burner
BPT-01: Ball Pressure Tester	Flame Hood	Other Plastics Test Equipment Available: Hot Mandrel Accelerated Ageing Apparent Density Glow Rod Repose Angle Measuring Granule Pourability

Model TRK-01: Tracking Tester

This device is used to test an insulating materials' resistance to tracking. "Tracking" is the creation of a carbon path formed on an insulating material as a result of flashovers. Meets UL and IEC requirements for CTI testing.

This tester incorporates all features for the complete test, Including: the electrodes, an electronic control for releasing the conductive drops, drop counter, adjustable current limiting, and test voltage adjustment to 600V (1000V model available)

Precision-machined, this is a state-of-the-art product that is the finest available in the world. This unit is imported. Specify 120V or 240V input voltage.

TOP

Flame Test Equipment		Flam Burner Burner: Tirril Burner meets UL, IEC and ASTM D3713 flame test. Tube Length is 100 mm above air inlets
		Burner Wing Tip: Mounts to top of burner, as required for some flame tests. Slit measures approximately 48 mm by 1.3 mm.
		Burner Mounting Fixture: Sets burner at 20^o or 45^o angle as required by most standards

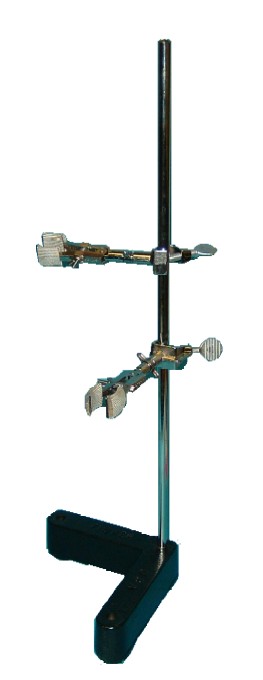

	Ring Stand	Ring Stand: Provided with 2 clamps for securing/positioning test specimens and/or wire gauze. Wire Screen/Gauze: Several types available TOP

Model NFB-01: Needle Flame Burner

Everything you need for the Needle flame testing requirements!

Needle Flame Test Kits

Burn test needles, UL-Listed gas valves, CSA-Listed gas hoses

Infinitely-adjustable Deluxe Burn Test Apparatus (model BTA-01, pictured)

Wire screen gauzes

Tissue paper and cheesecloth

Angle meters

The Needle Flame burner diameter 0.5 mm is intended for conducting burning tests. It is constructed in strict compliance with IEC Standards (i.e. IEC 65, 695-2-2, etc). It consists of a tube with a bore 0.5 ± 0.1mm and gas-flow regulating valve for adjustment of the flame height. It shall be used with a pressure regulator.

Additional Info

TOP

Model BPT-01: Ball Pressure Tester

For testing plastics to which hazardous voltage parts are mounted (i.e. terminal blacks, transformer bobbins, etc...) in accordance with most IEC, EN Standards and internationally harmonized UL and CSA Standards (950, 1010, 601, 335, etc.). The unit exerts 20N force on sample. Entirely stainless steel. NOTE - this test is required to be conducted in an oven at elevated ambient.

TOP

Flame Hood	Flame Hood Draft free table top, ducted fume hood. Double wall construction with enameled steel exterior. Laminated glass window, counter balanced for easy movement. Inside light and exhaust fan optional Shown with bottom counter - Sold separately. TOP
		Model	Width	Depth	Height
		FH-36	36"	31"	56"
		FH-48	48"	31"	56"
		FH-60	60"	31"	56"
