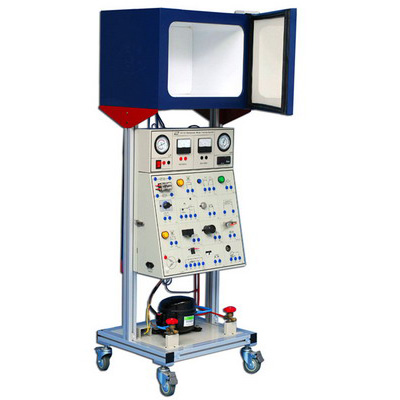

KR-101 Refrigerator Model Training System
Description
KR-101 completely places all essential refrigerator components on the front panel of the system. Only when students understand the operation principal of the refrigerator they can connect the components correctly. Under such circumstance, KR-101 becomes a real refrigerator and students can use the meters located on the front panel to record the status of the components during its operation.KR-101 also clearly demonstrates four major elements such as Condenser, Compressor, Evaporator, and Capillary Tube located at the rear side of the system. Students can touch and feel the elements as well as draw the Mollier diagram to record the characteristic of the refrigerant during different phase of the refrigeration cycle.
For the sake of quick demonstration, KR-101 provides a Teacher Board for teacher to insert it into the side slot. When teacher board is inserted, the whole system starts running even the wire connections on the front panel are incorrect.
List of Experiments
1. Practical exercise for RSC wires of the compressor
2. Constructing the control circuit of the refrigerator system
3. Management of the refrigerator system
4. Characteristics of the refrigerator
5. Drawing Mollier Chart
6. Calculating the performance of the refrigeratorOther Information
