Description

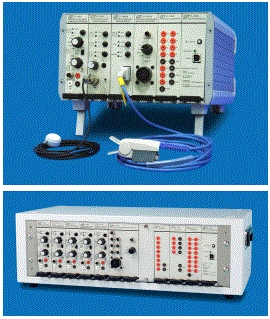

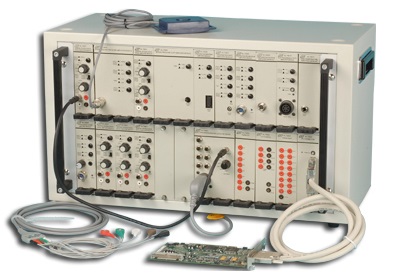

The KL-710 is an educational device simulation of vital signs, which allows students the virtual study them. The device contains hardware and software that can simulate under a demonstrative graphic environment (LabVIEW) and to help students expand their knowledge.
List of Experiments
Simulation Experiment 1 Measurement of EEG
Simulation Experiment 2 Measurement Electrooculogram
Simulation Experiment 3 Measurement electromyogram
Simulation Experiment 4 Measurement heart beat and sound.
Simulation Experiment 5 Electrocardiogram Measurement
Simulation Experiment 6 Measurement of Blood Pressure
Simulation Experiment 7 Measurement of pressure and temperature parameters of the blood of animals
Simulation Experiment 8 Intestinal Sound Measurement
Simulation Experiment 9 Measurement Breath
Simulation Experiment 10 Measurement Lung Function
Simulation Experiment 11 Measurement of psychophysiological parametersOther Information
The simulation software allows students to edit the data and control the educational process in the experiments.
It carried out four general functions:
Students will control experiments with simulation cards that have inputs and outputs - Digital inputs and outputs.
Students will perform real-time calculations for strengthening educational expanding mathematical knowledge, electronic and treatment of simulated signals (digital filters Wave Analysis, Spectrum, etc.).
Students will learn to create databases, including statistics, simulated signals with the educational team.
Students will practice that will create different storage methods, allowing the student to learn to keep information gained from simulation tools vital signs.
The software, written in LabVIEW, allows students to create their own program or simulation code.

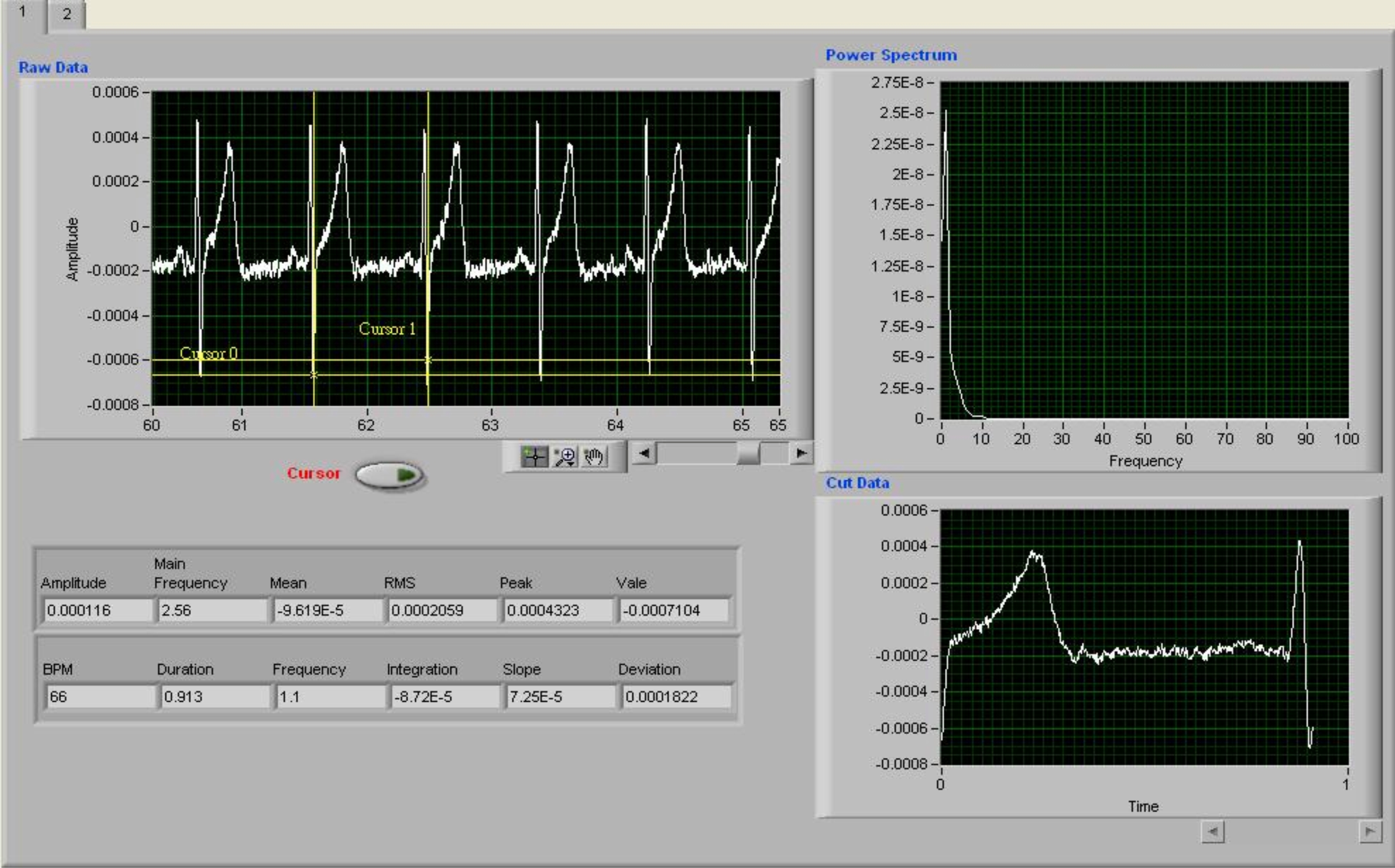

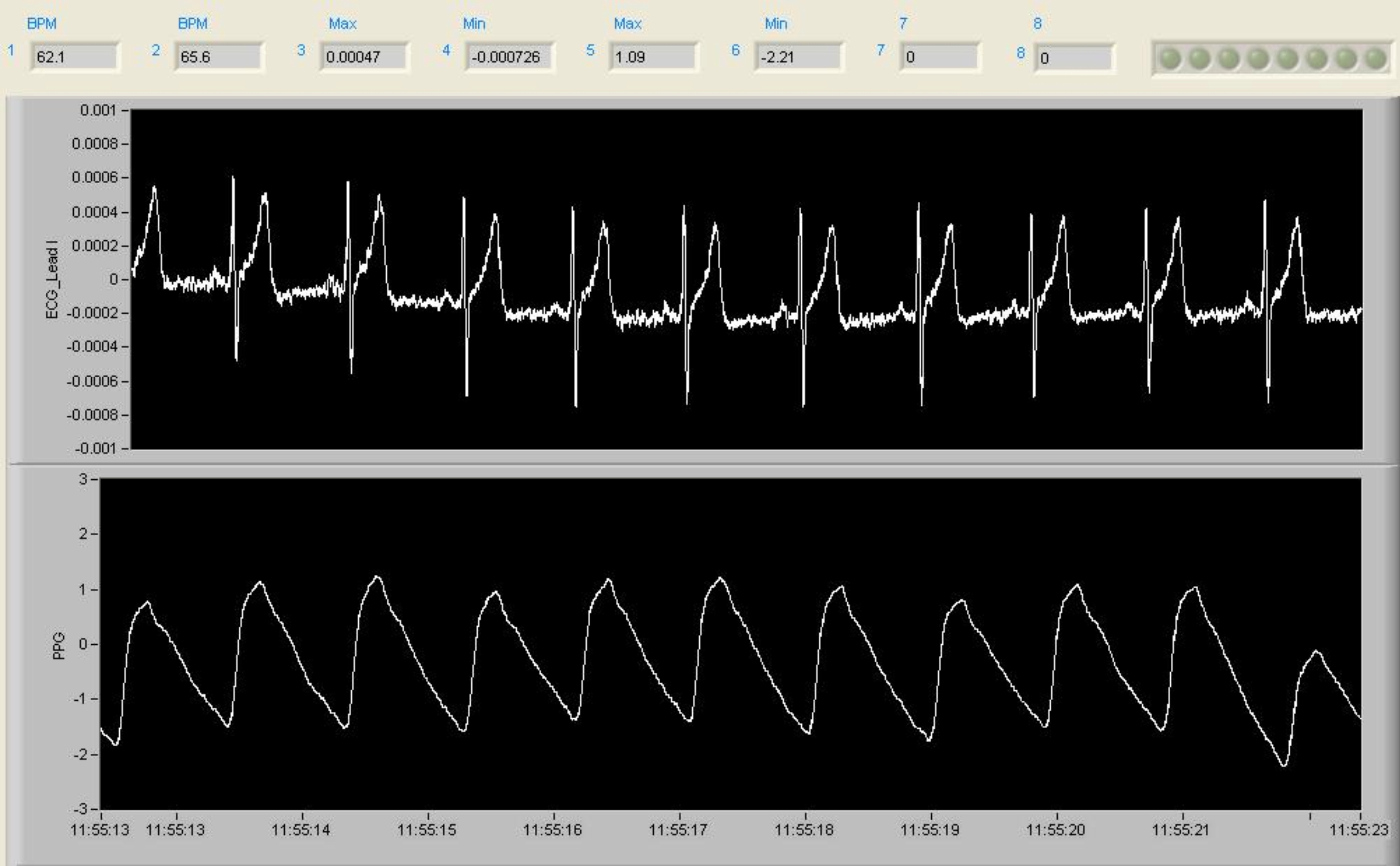

ECG_PPG
ECG_PPG
