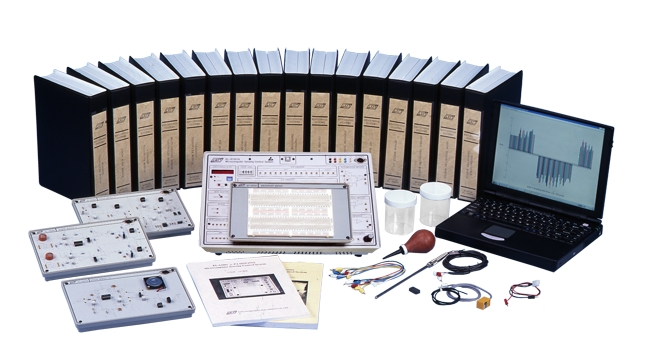

KL-620 Microcomputer Sensing Control Equipment

Description
The KL-620 Microcomputer Sensing Control equipment is a comprehensive sensor / transducer control training system. Its modular and closed-loop control circuits allow implementation of open-ended, individual control loops used in industrial applications.

The KL-620 uses only industrial-standard sensors / transducers (0~10V, 4~20mA) with USB interface.

List of Experiments

KL-61001B
D/A and A/D Converters

KL-64001
Photo Transistor / Interrupter & Hall Effect Sensor
(1) Characteristics and applications of photoconductive detectors
(2) Characteristics and applications of magnetic sensors
(3) Principles and applications of magnetic hall sensors

KL-64002
Pyroelectric Detector & Reed Switch &Thermistor & Mercury Switch Sensor
(1) Characteristics and applications of pyroelectric detector
(2) Characteristics and applications of reed switch
(3) Characteristics and applications of thermal sensors
(4) Characteristics and applications of mercury switch

KL-64003
Limit Switch & Vibration Switch & Condenser / Dynamic Microphone Sensor
(1) Characteristics and applications of limit switch
(2) Characteristics and constructions of vibration switches
(3) Characteristics and applications of microphones

KL-64004
Gas / Smoke & Ethanol Sensor
(1) Principles and applications of gas / smoke sensors
(2) Principles and applications of ethanol sensors

KL-64005
1. AD590 temperature sensor
(1) Characteristics and transduction circuit of the AD590
(2) Digital thermometer
2. Humidity sensor
(1) Basic measurement
(2) Impedance measurement
(3) Conversion voltage measurement

KL-64006
1. Infrared TX/RX sensor
(1) AC characteristics
(2) Event counter
2. Ultrasonic TX/RX sensor
(1) Space disturbance detector

KL-64007
1. Pressure sensor
2. Strain gauge

KL-64008
1. Hall current sensor
2. Proximity sensor

KL-64009
1. Photovoltaic sensor
2. CDS sensor
(1) CDS photoconductive cells characteristics
(2) Light controller

KL-64010
VFC converter

KL-64011
FVC converter

KL-64012
1. RTD(PT-100) sensor
(1) R vs. T characteristic of PT-100
(2) Transduction circuit
(3) Fire alarm

KL-64013
Liquid level control

KL-64014
Fiber optics communication

KL-64015
LVTD sensor

KL-64016
Rotation angle sensor

Other Information
* Industrial-standard sensors and transducers
* With USB interface
* Open-ended design, ideal for expansion
* Offer a sensing data acquisition software
