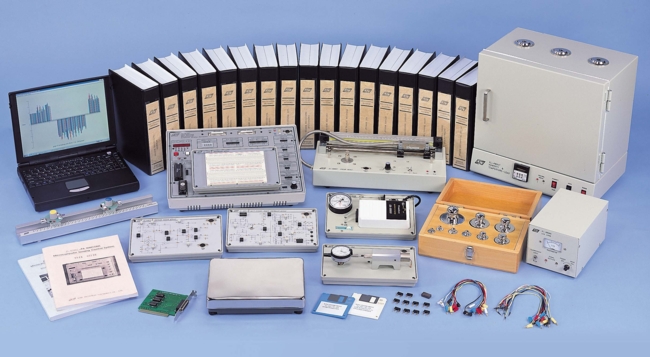

KL-600 Microcomputer Sensing Control System

Description
The KL-600 Microcomputer Sensing Control System is a comprehensive sensor / transducer control training system that incorporates industrial-grade components with various control circuits and load units. Its modular and closed-loop control circuits allow implementation of open-ended, individual control loops used in industrial applications.

The KL-600 uses only industrial-standard sensors / transducers (0~10V, 4~20mA) with USB interface.

List of Experiments

1. D/A and A/D Converters

2. Characteristics of Various Sensors
(1) Phototransistor
(2) Photocoupler
(3) Magnetic sensor
(4) Pyroelectric detector
(5) Thermistor
(6) Reed switch
(7) Inclination sensor
(8) Limit switch
(9) Mercury switch
(10) Vibration switch
(11) Microphone

3. General Sensor Characteristics Experiments
(1) Gas / smoke detector
(2) Ethanol sensor
(3) Digital hall sensor
(4) Analog hall sensor

4. AD590 Temperature Transducer Experiments
(1) Characteristics and transduction circuit of the AD590
(2) Temperature controller

5. Thermocouple Temperature Transducer Experiments
(1) Thermocouple characteristics
(2) Transduction circuit

6. PT-100 Temperature Transducer Experiments
(1) R vs. T characteristic of PT-100
(2) Transduction circuit
(3) Fire alarm

7. Humidity Transducer Experiments
(1) Basic measurement
(2) Impedance measurement
(3) Conversion voltage measurement
(4) Hygrometer

8. Load-Cell Weight Measurement Experiments
(1) Characteristics and transduction circuit of load cell
(2) Overweight alarm
9. LVDT Transducer Experiments
(1) Characteristics of LVDT
(2) Position detecor

10. Photovoltaic Transducer Experiments
(1) Photovoltaic characteristics
(2) Photovoltaic transducer circuit
(3) Automatic street lamp controller

11. Linear Scale Experiments
(1) Basic characteristics
(2) Direction measurement
(3) Distance measurement

12. Infrared Transducer Experiments
(1) DC characteristics
(2) AC characteristics
(3) Event counter
(4) IR remote controller

13. Ultrasonic Transducer Experiments
(1) Effective distance test
(2) Angle test
(3) Space disturbance detector

14. Pressure Sensor Experiments
(1) Zero-pressure input characteristics

15. V/F, F/V Converter Experiments
(1) VFC converter
(2) FVC converter
(3) FSK modulation
(4) Encoder

Other Information
* Industrial-standard sensors and transducers
* With USB interface
* Open-ended design, ideal for expansion
* Offer a sensing data acquisition software
