Description

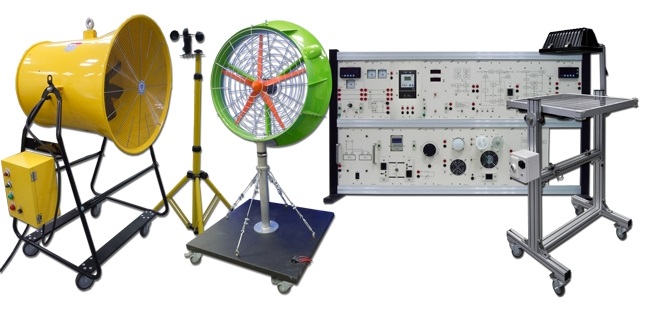

GES-500 (Wind and Solar Hybrid System) is composed of Solar Panel, Battery Bank Module, MPPT Solar Charging Controller Module, DC-AC Inverter Module, Grid-tie Inverter Module, Wind Generator Set, Wind Energy Monitor Module, Three-phase Rectifier Module, Wind and Solar Hybrid Controller Module, Load Module and Meters. By means of combining all these control systems, a teaching platform for implementation of the wind power, solar power and hybrid experiments is presented. It can help students understand the theory of on-grid and off-grid solar power, wind power generation system, hybrid system and further create practical applications.List of Experiments
1. Solar Power Generation System Manual
2. Wind Power System Manual
3. Scenery Complementary Laboratory Manual
Other Information
The software can display and store the data. Using the digital meter, the user can observe the current operation status of the system. All the input and output terminals are adopting the safety plugs, users can implement the experiments with the connecting wires easily and safely. Equipped with the Polarity reverse protection to avoid the modules being damaged due to the wrong input of inverse power. Adjustable light source for the sunlight intensity Adjustable solar panel, simulating the situation of the sunlight irradiation from different angles.
