Description

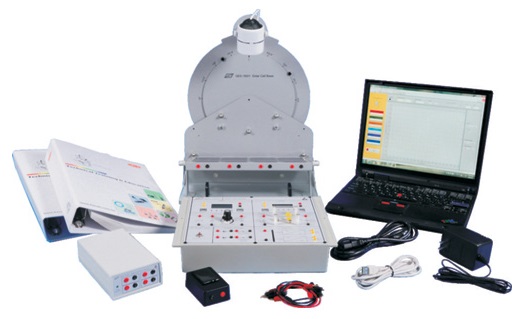

The GES-100 Solar Cell Trainer is an easy and self-contained trainer designed for learning the basic configuration and characteristics of a solar cell.
Through the use of different irradiations for various load units, students study the photoelectric effect of solar cells and plot the current-voltage curve as well as charging / discharging curves.List of Experiments
1. Measuring the irradiation of various light sources
2. Energy conversion of solar cells
3. Diode characteristic of a solar cell
4. Effect of light-sensing area on the open-circuit voltage of solar cell
5. Effect of light-sensing area on the short-circuit current of solar cell
6. Effect of irradiation on open-circuit voltage and short-circuit current of solar cells
7. Relationship between the angle of irradiation and the short-circuit current of solar cell
8. Open-circuit voltage and short-circuit current of solar cells connected in series-shading
9. Open-circuit voltage and short-circuit current of solar cells connected in parallel-shading
10. I-V curve of solar cells
11. Conversion efficiency and Maximum Power Point (MPP)
12. Simulating a daily course of sunlight
13. Charging a capacitor with solar cells
14. Capacitor discharging
15. Constructing a solar power island system
16. Inverter
Other Information
Self-contained solar cell trainer Adjustable solar irradiation and azimuth for sunlight simulation Equipped with DAQ is advantageous to acquire and save the experimental data
