Battery Tester
(for Li-ion, Li-Poly, Nicad, Nima, NiMH……)

　　　　　

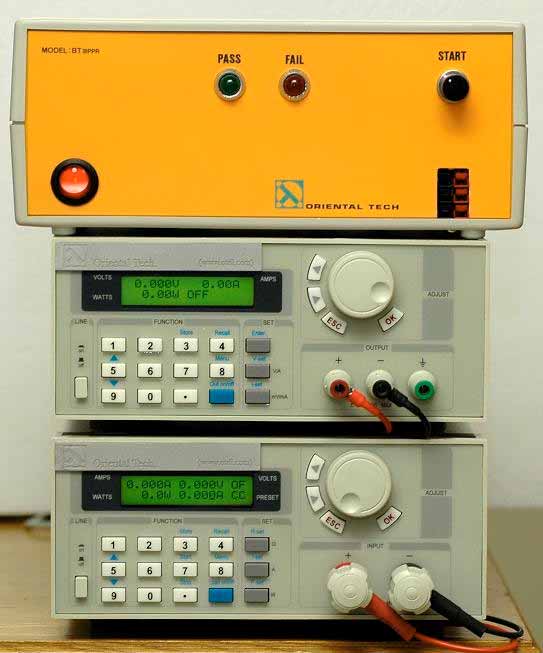

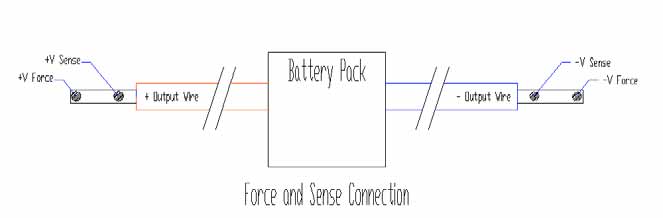

6 pins four wire connector Pin 1      +V Force ( for Current sink) Pin 2      -V Force ( for Current sink) Pin 3      +V Sense ( for Voltage measurement) Pin 4      -V Sense ( for Voltage measurement) Pin 5      + ( for Thermistor Measurement) Pin 6        NC

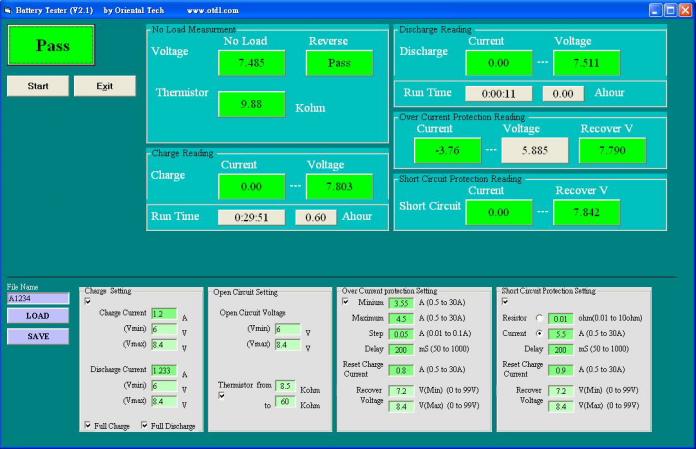

Electrical Specifications: Single Channel PC connection: RS-232 Voltage/Current Resolution: 0.01V, 0.1A AC Input: 110VAC (+-5%), 60 Hz Charge Current: 0 to 3A Open Circuit Voltage: 0 to 99.9V Over Voltage Protection: 0 to 99.9V Battery Reverse Voltage: -99.9 to 0V Programmable Power Supply Voltage: 0-36V Current: 0-3A Power: 108W Programmable Load Voltage: 0-360VDC Current: 0-30ADC Power: 300W Thermistor Resistance Measurement Individual current source: 0.1mA Current Resolution: 0.01mA Fixed constant current to measure voltage drop to calculate resistance Software: Text Data, MS Excel readable “,” (Batch Mode) Programmable software to be used with different battery chemistries Charge/Discharge Function Test Features: Over Voltage Protection for battery pack (Option Feature) Open Circuit Voltage (OCV) Reverse Polarity Test Short Circuit Test (By E-Load) Recover Voltage after Short Circuit Over Current Protection (By E-Load) Charge/Discharge with load applied to test if pack accepts charge current
