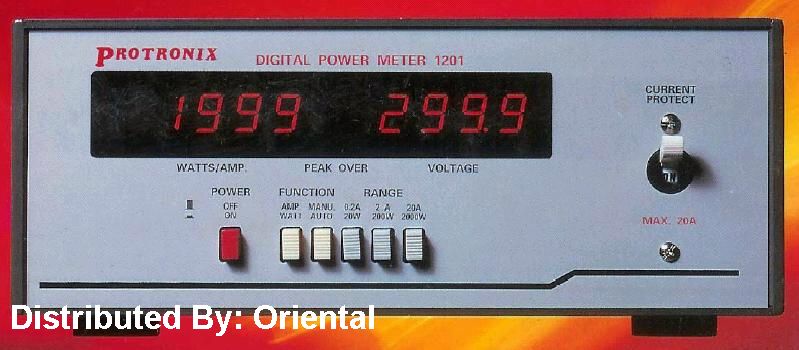

PROTRONIX - Digital Power Meter 1201

NEW - True Voltage Reading is available now!
"PROTRONIX" 1201A True Power, Current, Voltage Digital Meter

Features:

Dual Digital Display Voltage, Ampere, Watt

**True RMS Current, Voltage, Power Reading

Range Auto/Manual selectable

Power Factor Zero to Unity

Watt Accuracy ±0.3% + 3d

The 1201A standard, The finest quality in AC power line measurement

True AC Voltage:		True AC Current:
Auto Range	0 ~ 299.9V	Range	.1999A, 1.999A, 19.99A
Accuracy	±(0.25% +2d)	Accuracy	±(0.3% +2d)
Freq. Response	40Hz ~ 1KHz	Freq. Response	40Hz ~ 200Hz for 1999A 40Hz ~ 1KHz for 1.999 ~ 19.99A
Protection	300V	Peak over Indication	2.5 times of Range
Impedance	Above 200KW	Shunt Resistance	0.01W
		Crest Factor Response	50:1 for Minimum RMS Input, Linearly decreasing to 3:1 for Full Scale RMS Input

General
Displays : DUAL 4 Digits 7-segment L.E.D.
Watts/Ampere Reading : 3 Auto Ranges up at 2000 Counts down at 0.180 Counts
Min. Input : 10% of Range for All True RMS Converters
Dimension : 260 (W) x 100 (H) x 340 (D) mm
Weight : 4Kgs
Power : 115V/230V ±10%, 50/60Hz, 10W
